vw80000 E-01长时间过电压应用：

可编程直流电源SYSKON P800-60（电压0-60V；电流0-40A；Z大功率800W）用于生成标准大众vw80000-2017(原LV124)第7章节规定的波形

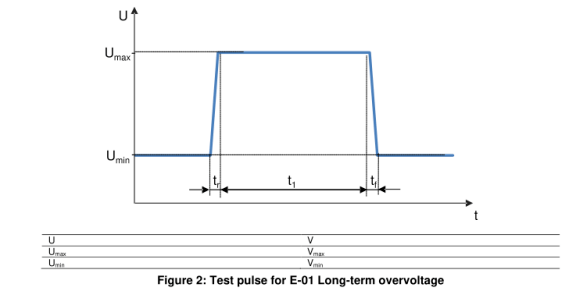

E-01长时间过电压

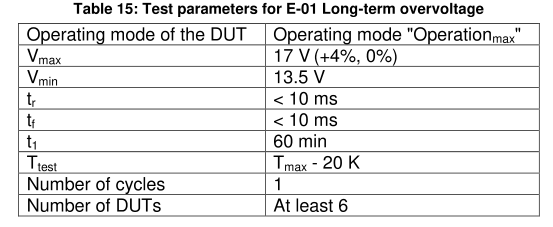

脉冲规格

序列功能设定

该电源的序列功能用于生成所需的测试脉冲信号，可以使用我们的软件GM SYSKON SFP来进行设定。

通过对下图中1-65进行参数设定来得到需要的输出信号波形

这些设定好的各序列参数可以保存为TXT文本格式（ANSI码），如下这样：

//STORE storage#, voltage[V], current[A], time[sec], function

STORE 1, 13.5, 20, 5, NF

STORE 2, 17, 20, 0.005, RU

STORE 3, 17, 20, 60, NF

STORE 4, 17, 20, 60, NF

STORE 5, 17, 20, 60, NF

STORE 6, 17, 20, 60, NF

STORE 7, 17, 20, 60, NF

STORE 8, 17, 20, 60, NF

STORE 9, 17, 20, 60, NF

STORE 10, 17, 20, 60, NF

STORE 11, 17, 20, 60, NF

STORE 12, 17, 20, 60, NF

STORE 13, 17, 20, 60, NF

STORE 14, 17, 20, 60, NF

STORE 15, 17, 20, 60, NF

STORE 16, 17, 20, 60, NF

STORE 17, 17, 20, 60, NF

STORE 18, 17, 20, 60, NF

STORE 19, 17, 20, 60, NF

STORE 20, 17, 20, 60, NF

STORE 21, 17, 20, 60, NF

STORE 22, 17, 20, 60, NF

STORE 23, 17, 20, 60, NF

STORE 24, 17, 20, 60, NF

STORE 25, 17, 20, 60, NF

STORE 26, 17, 20, 60, NF

STORE 27, 17, 20, 60, NF

STORE 28, 17, 20, 60, NF

STORE 29, 17, 20, 60, NF

STORE 30, 17, 20, 60, NF

STORE 31, 17, 20, 60, NF

STORE 32, 17, 20, 60, NF

STORE 33, 17, 20, 60, NF

STORE 34, 17, 20, 60, NF

STORE 35, 17, 20, 60, NF

STORE 36, 17, 20, 60, NF

STORE 37, 17, 20, 60, NF

STORE 38, 17, 20, 60, NF

STORE 39, 17, 20, 60, NF

STORE 40, 17, 20, 60, NF

STORE 41, 17, 20, 60, NF

STORE 42, 17, 20, 60, NF

STORE 43, 17, 20, 60, NF

STORE 44, 17, 20, 60, NF

STORE 45, 17, 20, 60, NF

STORE 46, 17, 20, 60, NF

STORE 47, 17, 20, 60, NF

STORE 48, 17, 20, 60, NF

STORE 49, 17, 20, 60, NF

STORE 50, 17, 20, 60, NF

STORE 51, 17, 20, 60, NF

STORE 52, 17, 20, 60, NF

STORE 53, 17, 20, 60, NF

STORE 54, 17, 20, 60, NF

STORE 55, 17, 20, 60, NF

STORE 56, 17, 20, 60, NF

STORE 57, 17, 20, 60, NF

STORE 58, 17, 20, 60, NF

STORE 59, 17, 20, 60, NF

STORE 60, 17, 20, 60, NF

STORE 61, 17, 20, 60, NF

STORE 62, 17, 20, 60, NF

STORE 63, 13.5, 20, 0.01, RU

STORE 64, 13.5, 20, 5, NF

STORE 65, 0, 0, 0, CLR

这些文本可以进行编辑并保存，而后在软件的TASK中打开，就可以将设置加载到电源设备中，得出相应波形。

序列的参数设定如下图：

起始序列=1

终止序列=65

重复=1

序列的执行通过在Sequence中点击触发按钮GO
